Genesis

Genesis 2018 Zeal Ten

£1,324.99
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

We operate a simple 30 days returns policy that applies to all products sold and delivered direct to you the customer. This means that for any reason should you decide that you no longer want the product then you may return it to us within this timeframe in it's original packaging, un-used with the relevant tags attached. Once we have checked it over we will refund your money within 30 days or replace your product (subject to stock availability). A copy of the original sales receipt must be included with the returned item. This offer in non-transferable. Please contact us at via the options below before returning goods to obtain a relevant returns reference to avoid any delay in dealing with your returns.

DAMAGED OR INCORRECT ITEMS

If for any reason the product you ordered is incorrect or damaged then naturally we would be happy to replace the product or refund your money. Please notify us via email or phone of any damages / incorrect products within 7 days of your delivery. Proof of damage will be required.

RETURNING PRODUCTS

Should you need to return any products to us then you will be responsible for the cost of the postage. A returns form can be completed and submitted to us above. On receiving the products we will carry out an inspection and should we find that it was in anyway our fault or the product was faulty then we will happily refund you the cost of the postage. Naturally should we believe it not to be our fault then we may choose not to refund any postage and may choose to claim costs of packaging for returning the products to yourself.

Feel free to contact us at 01506 845390 for any further information.

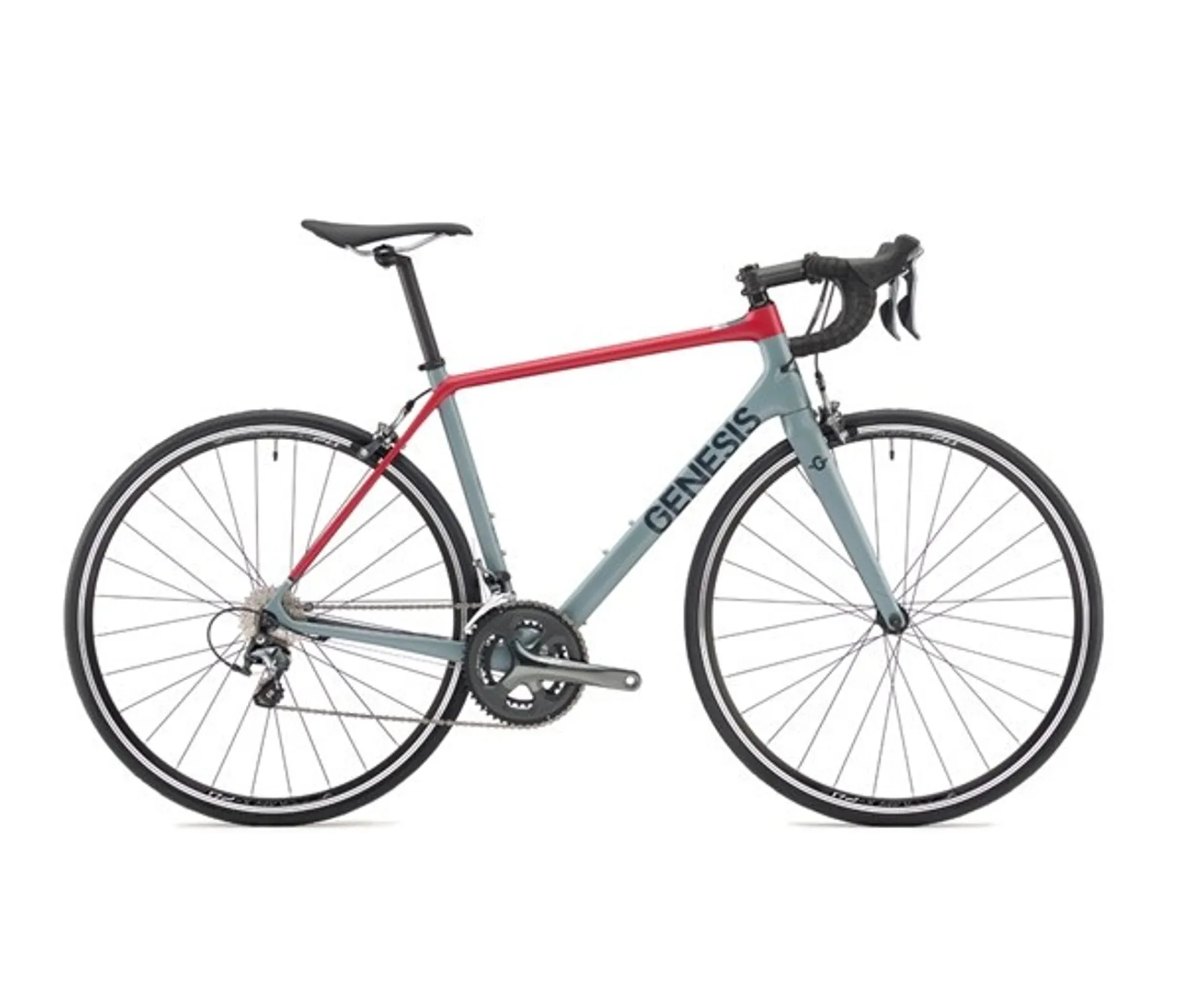

Genesis 2018 Zeal Ten

Brand:Genesis

Code:VARGNAB7GRY

Product Details



Zeal 10

Form and function.

The perfect bike to enter the world of carbon fibre, the Zeal is designed to provide you with hours of stress free cycling. Endurance geometry and Shimano Tiagra components create a perfect combination of comfort and reliability.

Tech Highlights

24/30T MODULUS CARBON

CARBON FRAME

700C

WHEEL SIZE

SHIMANO TIAGRA 2 X 10 SPEED

GEARING

CARBON ROAD

FORK

Size Guide








XS      Recommended Height Range: 152 - 167 cm

SM      Recommended Height Range: 162 - 172 cm

MD      Recommended Height Range: 170 - 182 cm

LG      Recommended Height Range: 177 - 187 cm

XL      Recommended Height Range: 185 - 193 cm

Geometry



Name XS S M L XL
Seat Tube 475mm 495mm 510mm 530mm 550mm
Top Tube 530mm 546mm 558mm 576mm 596mm
Frame Reach 375mm 381mm 385mm 396mm 402mm
Frame Stack 540mm 558mm 574mm 590mm 614mm
Head Tube 140mm 160mm 176mm 195mm 220mm
Head Angle 71.5° 71.5° 72° 72° 72°
Seat Angle 74° 73.5° 73.3° 73° 72.5°
Chainstay 415mm 415mm 415mm 415mm 415mm
BB Drop 73mm 71mm 71mm 69mm 69mm
Wheelbase 1005mm 1005mm 1011mm 1029mm 1043mm
Fork Offset 52mm 52mm 52mm 52mm 52mm
Fork Trail 59mm 59mm 56mm 56mm 56mm
Standover 755mm 769mm 784mm 803mm 824mm
Stem 90mm 100mm 100mm 110mm 110mm
Handlebar 400mm 420mm 420mm 440mm 440mm
Crankarm 170mm 172.5mm 172.5mm 175mm 175mm






Specification

FRAME 24/30T Modulus Carbon Road w/ Tapered Headtube & Fully Internal Cable Routing
REAR SHOCK N/A
FORK Carbon Road w/ 1-1/2"-1-1/8" Tapered Alloy Steerer
HEADSET Prestine PT-1860E 1-1/8" - 1-1/2" tapered
SHIFTERS Shimano Tiagra ST-4700 / 2x10 speed
REAR DERAILLEUR Shimano Tiagra RD-4700 / SS cage
FRONT DERAILLEUR Shimano Tiagra FD-4700
CHAINSET Shimano Tiagra FC-4700 / 50-34T / XS, 170mm / S-M, 172.5mm / L-XL, 175mm
BOTTOM BRACKET Shimano BB-RS500
CHAIN KMC x10
CASSETTE / FREEWHEEL Shimano CS-HG500-10 / 12-28T
RIMS Jalco MRX-24 / 28h
HUBS KT G15F/G5ER 28h / front / rear
SPOKES Steel 14g
TYRES CST Compressor 700x25c 60TPI
BRAKES Shimano Tiagra BR-4700
BRAKE LEVERS Shimano Tiagra ST-4700
HANDLEBARS Genesis alloy / 125mm drop x 70mm reach / XS, 400mm / S-M, 420mm / L-XL, 440mm
GRIPS / TAPE Velo tape w/Gel
STEM Genesis AS-007 / + - 7deg / XS, 90mm / S-M, 100mm / L-XL, 110mm
SADDLE Genesis Road Comfort
SEATPOST Genesis Alloy / 27.2x350mm
PEDALS N/A
EXTRAS
WEIGHT 9.04
